SS316 Tube

Pipe Type: Stainless Steel 316 Pipe, SS 316 Tubingg,Welded 316 Pipe
Application:use for mechanical applications,food and beverage, pharmaceutical, and chemical and petrochemical processing applications.
Specification:OD: Seamless Pipe: 6mm-530mm
Welded Pipe: 8mm-3000mm"
WT: Seamless Pipe: 1.0mm - 40mm
Welded Pipe: 0.5mm-45mm
LENGTH: 5.8m,6m,11.8m,12m,or as required
Standard:Type 304-ASTM A240, ASTM A666, AMS 5513 Type 304L -ASTM A240
Ends:Square cut, Burr removed
Surface:Lightly oiled, hot dip galvanized, Electro galvanized, Black
Packing:Waterproof Paper Wrapped, Steel Strips Bundled, Two Tags on Each Bundle

STANDARD

WERKSTOFF NR.

UNS

BS

JIS

GOST

AFNOR

EN

SS 316

1.4401 / 1.4436

S31600

316S31 / 316S33

SUS 316

-

Z7CND17‐11‐02

X5CrNiMo17-12-2 / X3CrNiMo17-13-3


Specifications

Dimensions

Seamless Pipe Size

ERW Pipe Size

ASTM A312, A358 / ASME SA312, SA358

ASTM, ASME and API



1/2″ NB – 16″NB



1/2″ NB – 24″ NB

EFW Pipe Size :

Outside Diameter :

Length

Thickness

6″ NB – 100″ NB



6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available



Single Random, Double Random & Required Length



0.3mm – 50 mm



Schedule

Type

Form

End

SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS



Seamless,Welded,ERW,EFW

Round Pipes, Square Pipes, Rectangular Pipe

Plain End, Beveled End, Treaded

Stainless Steel 316/316L Pipes Equivalent Grades


STANDARD

WERKSTOFF NR.

UNS

JIS

BS

GOST

AFNOR

EN

SS 316

1.4401 / 1.4436

S31600

SUS 316

316S31 / 316S33

-

Z7CND17‐11‐02

X5CrNiMo17-12-2 / X3CrNiMo17-13-3

SS 316L

1.4404 / 1.4435

S31603

SUS 316L

316S11 / 316S13

03Ch17N14M3 / 03Ch17N14M2

Z3CND17‐11‐02 / Z3CND18‐14‐03

X2CrNiMo17-12-2 / X2CrNiMo18-14-3


• Tube range- the size of the tube is ranging in 6.35mm OD to 101.6mm OD.

• Outer diameter- The outer diameter of product is 3.00mm to 219.10mm.

• Wall thickness- The wall thickness of product of 0.40mm to 12.70mm.

• Schedules- The product schedule is ranging in 5s, 160, 10s, 30, 10, 40, 40s, 80, XS, 80s and XXH.

• Length- The product length is ranging up to 30M and is custom made as well.

• Standards- The standard specification of the product is ASTM SA 213/ A213.

• Types- the types in which product supplies are Rectangle, square, U-shape, coil, hydraulic, round and honed tube.

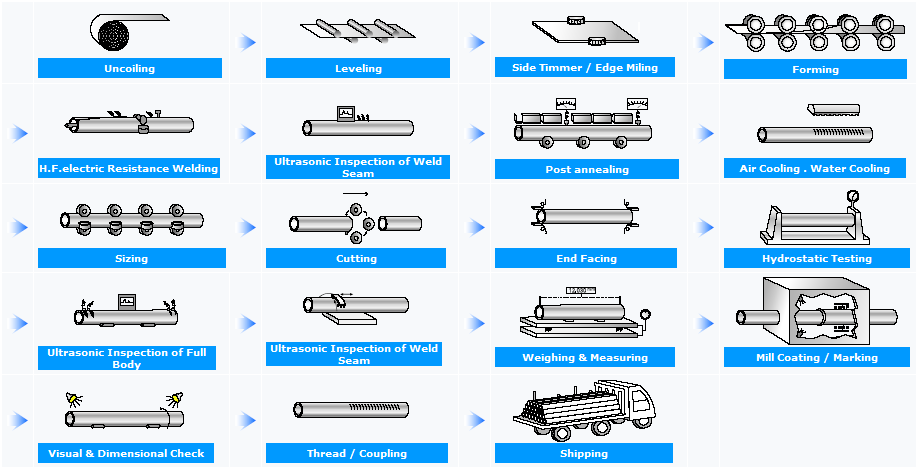

201812111516535630778

Chemical composition

A666,ASTM A240



Element

Type 316

%max

Type 316L

%max

Carbon

0.08

0.030

Manganese

2.00

2.00

Sulfur

0.030

0.030

Phosphorus

0.045

0.045

Silicon

0.75

0.75

Chromium

16.0 – 18.0

16.0 – 18.0

Nickel

10.00 – 14.00

10.00 – 14.00

Molybdenum

2.00 – 3.00

2.00 – 3.00

Nitrogen

0.10

0.10




Typical Mechanical Properties

Grade

Tensile


Ultimate/Min

Yield/Min

Elongation/Min


KSI

MPA

KSI

MPA

%

316

75

515

30

205

35

316L

70

485

25

170

35

Value added services:

· Hot dipped galvanizing

· Epoxy & fbe coating

· Electro polish

· Draw & expansion.



Surface--stainless steel plate/sheet/coil

Surface Finish

Definition

Application

2B

Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.

Medical equipment, Food industry, Construction material, Kitchen utensils.

BA/8K mirror

Those processed with bright heat treatment after cold rolling.

Kitchen utensils, Electric equipment, Building construction.

NO.3

Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.

Kitchen utensils, Building construction.

NO.4

Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.

Kitchen utensils, Building construction, Medical equipment.

Hairline

Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.

Building Construction.

NO.1

The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.

Chemical tank, pipe.






Products description

Alloy 316L is molybdenum-bearing austenitic stainless steel. The higher nickel and molybdenum content in this grade allows it to demonstrate better overall corrosion resistant properties than 304, 316 stainless steel by adding Mo element, make its corrosion resistance, and improve the high temperature strength, high temperature can reach 1200-1200 degrees, can be used in critical conditions,especially with regard to pitting and crevice corrosion in chloride environments. In addition, Alloy 316/ 316L provides excellent elevated temperature tensile, creep and stress-rupture strengths, as well as outstanding formability and weldability. 316L is the lower carbon version of 316 and is immune from sensitization; therefore, it is very frequently used in heavy gauge welded components



Keywords:316 STAINLESS STEEL TUBE , GRADE 316 STAINLESS STEEL PIPE, STAINLESS STEEL 316 , 316L SS TUBE


Applications :

• Food preparation equipment particularly in chloride environments.
• Chemical processing, equipment
• Heat exchangers
• Marine applications
• Architectural applications
• Medical implants, including pins, screws and orthopaedic implants like total hip and knee replacements
• Fasteners
