Nickel Alloy Pipe Fittings

Nickel Alloy Pipe Fittings
Standard:
ASTM / ASME SB 336
Size:1/8" NB upto 48" NB in Sch. 5, 10, 40, 80, 160, Xs, XXS
Grade: UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276).

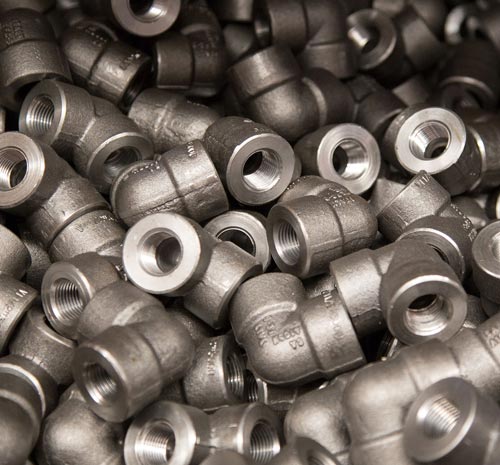

Nickel Alloy Forged Fittings
Standard:ASTM B366 / ASME SB 366
Size:15 NB To 100 NB
Grade:UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)
Nickel Alloy Flanges
Standard:ASTM / ASME SB 564 / 160 / 472
Size:1/8" NB upto 24" NB in Sch. 150#, 300#, 600#, 900#, 1200#, 1500#, Table D, Table E
Pressure Ratings:150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Grade:UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)


Pipe

Butt Weld Fittings

Socket Weld & Threaded Fittings

Flanges

Types

Seamless and Welded

90º LRs, 90º SRs, 45º Elbows,
Concentric Reducers, Eccentric Reducers,
Tees, Reducing Tees and Stub Ends,Caps

Special Items as. to your requirements

90º Elbows, 45º Elbows, Tees,
Reducing Tees, Couplings and Unions,Crosses,Caps

Plugs (Square, hexagonal, round head)

Hexagonal Bushings

Unions

Hex., swage and pipe nipples

Special Items as. to your drawings

Instrumentation fittings

Welding Neck Flanges

Blind Flanges

Slip on Flanges

Lap Joint Flanges

Socket Welding Flanges

Threaded Flanges

Orifice Flanges,

Long Welding Neck Flanges

Spectacle Blinds

Special flanges acc. to customer drawings

Custom made flanges

Sizes

1/4″ – 8″ Seamless
1/4″ – 12″ Welded

1/8″ to 120″ (in any kind of combination)

Size range: 1/8″ to 120″ (in any kind of combination)



1/8″ to 120″ (in any kind of combination)

Schedules

Sch 10S – XXH

Sch 10S – 80S


Sch 10S – 80S

Pressures



2000 lbs, 3000 lbs, 6000 lbs

From 150 lbs up to 2500 lbs

Standards

.....

ASTM B 366,ASTM A403WPW, A403 WPX, A403WPS

ASTM B 462, ASTM B 564,ASTM A182 MSS SP-114

ASTM A182


Nickel Pipe Fittings Dimensions :

Nominal Pipe Size

All Fittings

All Fittings

All Fittings

Elbows/ Tees

180° Return Bends

180° Return Bends

180 Deg Return Bends

Reducers

Caps

NPS

O.D. at Bevel (1), (2)

I.D. at End
(1), (3), (4)

Wall Thickness (3)

Centre-to-End Dimension A,B,C,M

Centre-to-Centre O

Back-to-Face K

Alignment of Ends U

Overall Length H

Overall Length E

½ to 2½

0.06
-0.03

0.03

Not less than 87.5% of nominal thickness

0.06

0.25

0.25

0.03

0.06

0.12

3 to 3 ½

0.06

0.06

Not less than 87.5% of nominal thickness

0.06

0.25

0.25

0.03

0.06

0.12

4

0.06

0.06

Not less than 87.5% of nominal thickness

0.06

0.25

0.25

0.03

0.06

0.12

5 to 8

0.09
-0.06

0.06

Not less than 87.5% of nominal thickness

0.06

0.25

0.25

0.03

0.06

0.25

10 to 18

0.16
-0.12

0.12

Not less than 87.5% of nominal thickness

0.09

0.38

0.25

0.06

0.09

0.25

20 to 24

0.25
-0.19

0.19

Not less than 87.5% of nominal thickness

0.09

0.38

0.25

0.06

0.09

0.25

26 to 30

0.25
-0.19

0.19

Not less than 87.5% of nominal thickness

0.12

0.19

0.38

32 to 48

0.25
-0.19

0.19

Not less than 87.5% of nominal thickness

0.19

0.19

0.38


Nickel Alloy: Pipe, Valves, Fittings & Flanges:

Trade Name

Alloy® 20

Nickel 200

Nickel 201

Monel® 400

Inconel® 600

Inconel® 625

INCOLOY® 800

INCOLOY® 800H

INCOLOY® 800HT

INCOLOY® 825

UNS #

N08020

NO2200

N02201

N04400

N06600

N06625

N08800

N08810

N08811

N08825

Seamless Pipe /
Seamless Tube

B/SB729

B/SB161
B/SB163

B/SB161
B/SB163

B/SB165
B/SB163

B/SB167
B/SB163

B/SB444

B/SB407
B/SB163
A/SA213

B/SB407
B/SB163
A/SA213

B/SB407
B/SB163
A/SA213

B/SB423
B/SB163

Welded Pipe/
Welded Tube

B/SB464
B/SB468
B474
A/SA358

B725
B474
B730

B725
B474
B730

B725
B474
B730

B/SB517
B/SB516
B474

B/SB705
B474
B/SB704

B/SB515
B/SB514
A/SA358

B/SB515
B/SB514
A/SA358

B/SB515

B/SB705
B474
B/SB704












Buttweld Fittings*

B/SB366
Grade
WP20CB

B/SB366
Grade
WPN

B/SB366
Grade
WPNL

B/SB366
Grade
WPNC

B/SB366
Grade
WPNCI

B/SB366
Grade
WPNCMC

B/SB366
Grade
WPNIC

B/SB366
Grade
WPNIC10

B/SB366
Grade
WPNIC11

B/SB366
Grade
WPNICMC












Forged Valves

B/SB462
A/SA182
F20

B/SB564
B/SB160 BAR

B/SB160 BAR

B/SB564

B/SB564

B/SB564

B/SB564

B/SB564

B/SB564

B/SB564
B/SB425 BAR

Forged Fittings

B/SB462
A/SA182
F20

B/SB564

-----

B/SB564

B/SB564

B/SB564

B/SB564

B/SB564

B/SB564

B/SB564

Flanges

B/SB462
A/SA182
F20

B/SB564

-----

B/SB564

B/SB564

B/SB564

B/SB564

B/SB564

B/SB564

B/SB564












Cast Valves

A/SA351
A743
A744
UNS N08007

A/SA494
UNS N02200

-----

A/SA494
UNS N24135
UNS N24020

A/SA494
UNS N06040

A/SA494
UNS N26625

A/SA351
UNS N08151

A/SA351
UNS N08151

-----

A/SA494
UNS N08826

Grade

CN7M

CZ100

-----

M35-1
M35-2

CY40

CW6MC

CT15C

CT15C

-----

CU5MCuC












Plate

B/SB463
A/SA240

B/SB162

B/SB162

B/SB127

B/SB168

B/SB443

B/SB409
A/SA240

B/SB409
A/SA240

B/SB409
A/SA240

B/SB424



Fittings Process

fittings process


Flange Process

flanges-manufacturing-process

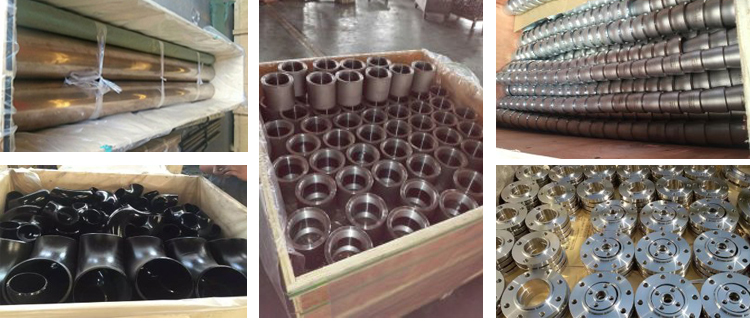

Nickel Alloy Fitting are individually wrapped by hand to ensure that the high quality of the material is maintained and no damage in the last stages of production. We recommend Plywood cases or pallet packaging to ensure safe packaging and prompt delivery of the ordered consignment. Nickel Buttweld Fitting come with imprints relevant to the job information (eg, heat number, size, material and part number). This information is also printed along all delivered Industrial Buttweld Fittings.
