Nickel Alloy Pipes

Specification:ASTM B163, ASTM B161, ASME SB161, and ASME SB163
Size:Seamless 1/2" - 10" , Welded 1/2" - 48"
Thickness : SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
End:Plain End, Beveled End, Treaded
Types:Seamless / ERW / Welded / Fabricated / CDW
Length:6Meters fixed or S.R.L
Packing:Wooden Case or Wooden Pallets
Material Grade: UNS N04400, UNS N06025, UNS N08800, UNS N08811, UNS N08825, UNS N06600 etc

Nickel's high degree of corrosion resistance is due to the fact that it is a relatively noble metal within the galvanic electrochemical series of metals. Adding chromium, molybdenum, copper and other elements to the alloys gives them an even higher resistance to oxidation and corrosion which makes it possible to use them in a wider range of applications. Seamless tubes and pipes made of corrosion resistant nickel alloys are the first choice for a lot of applications due to their excellent resistance to various acids (sulphuric acid, hydrochloric acid, phosphoric acid) and alkaline solutions. A further increase of specific alloy elements (such as chromium, molybdenum, tungsten, titanium, aluminium, niobium, etc.) improves the high temperature, high strength characteristics of austenitic steels. The disadvantage of austenitic stainless steels occurs in the fact that these elements have a reduced solubility. In order to compensate this effect and to reach the desired result, the nickel concentration can be increased. The highest alloyed types of high temperature nickel based alloys contain only a very low iron concentration.

Monel >> Monel 400, Monel K-500, Monel R405

inconel 718 forged bar, Inconel 718 round bar Price ,Astm B637,Astm B637 Forged Round Bar Inconel 718 price

Inconel >> Inconel 600, Inconel 601, Inconel 625, Inconel 617, Inconel 690, Inconel 718,

Inconel X-750, Inconel 926

inconel 718 forged bar, Inconel 718 round bar Price ,Astm B637,Astm B637 Forged Round Bar Inconel 718 price

Incoloy >> Incoloy A-286, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Incoloy 926, Nimonic 75, Nimonic 80A, Nimonic 263, Nimonic 90, Incoloy 901, Incoloy 925

inconel 718 forged bar, Inconel 718 round bar Price ,Astm B637,Astm B637 Forged Round Bar Inconel 718 price

Hastelloy >> Hastelloy C-276, Hastelloy C-22, Hastelloy C-4, Hastelloy B-2, Hastelloy B-3,

Hastelloy X, Hastelloy G, Hastelloy G2, Hastelloy G3, Hastelloy G30

inconel 718 forged bar, Inconel 718 round bar Price ,Astm B637,Astm B637 Forged Round Bar Inconel 718 price

Austenitic stainless steel >> 904L, Nitronic 60, XM-19, Nitronic 40, 316Ti, 316N, 316LN, 317,

317L, 310S, 253MA

inconel 718 forged bar, Inconel 718 round bar Price ,Astm B637,Astm B637 Forged Round Bar Inconel 718 price

DP Steel >> 254SMO, F50, 2205, F53, F55 (ZEROM 100) , F60, F61, F65

inconel 718 forged bar, Inconel 718 round bar Price ,Astm B637,Astm B637 Forged Round Bar Inconel 718 price

PH Steel >> 15-5PH, 17-4PH, 17-7PH


Designation

Nearest Related Specification

Description

ALLOY C-276

ASTM B-574, 575, 619, 622, 626

Outstanding resistance to a variety of environments, including strong oxidisers, hot contaminated mineral acids, wet or dry chlorine contaminated media, acetic anhydride and sodium chloride solutions.

NICKEL 200

ASTM B160-3, BS3072: NA11

Commercial wrought nickel; good mech. props; excel.resistance to many corrosion environments including foods, synthetic fibres and alkalis.

MONEL*
ALLOY 400

ASTM B127, 163-165, BS3072-6: NA13

Good resistance to corrosion by sea water, dilute sulphuric, chemical, steam and petroleum plant, marine and pickling equipment.

MONEL*
ALLOY K-500

BS3072-6: NA18 QQ-N-286D

Similar corrosion resistance to Monel Alloy 400, but amenable to precipitation-hardening to give high strength. For propeller and pump shafts, bolts, doctor blades and valves.

INCONEL*
ALLOY 600

ASTM-B163, 166, 168, BS 3072-6: NA14

Combines excellent high temp strength with resistance to oxidising, carburising, nitriding and reducing atmospheres.

INCONEL*
ALLOY 601


Improved alloy where maximum high temp strength and oxidation resistance required. Good sulphidation and carburising resistance.

INCONEL*
ALLOY 625

ASTM B443,444,446

For wet corrosive, high temp and cyrogenic service. High resistance to range of corrosive solutions including acids, salts and sea water where pitting, crevice or stress cracking may occur. Excellent for overlay and dissimilar metal welds.

INCOLOY*
ALLOY DS

BS 3072-6: NA17

A general purpose heat-resisting alloy with particular resistance to carburisation and alternating carburisation and oxidation. For furnace parts, heat-treatment and vitreous enamelling equipment.

INCOLOY*
ALLOYS
800 & 800H

ASTM B163, 407-9, BS 3072-16: NA15

Resistant to chloride-ion stress-corrosion cracking, excellent high temperature strength and immunity to Sigma phase formation. Widely used for petrochemical and high temperature process equipment.

INCOLOY*
ALLOY 825

ASTM BI63, B423-5, BS 3072-6: NA16

Developed for use in aggressive corrosive environments. Exceptional resistance to corrosion by acids and alkalis in reducing or oxidising conditions. It is resistant to stress corrosion cracking and pitting and used for chemical plant and pickling plant.

DUPLEX STAINLESS
STEEL 2507

ASTM A240, A47 9, A959

2507 is a duplex stainless steel with very high strength. It has very high resistance to uniform corrosion, pitting and crevice corrosion and to stress corrosion cracking.

AUSTENITIC STAINLESS STEEL 310 (S31000)

ASTM A240

A heat resistant austenitic stainless steel with better scaling resistance than standard grades. Usable to 1035°C in intermittent service, 1150°C in continuous service

AUSTENITIC STAINLESS STEEL 253MA (S30815)

ASTM A240

253 MA is microalloyed with rare earth metals (REM) for excellent heat resistance. Best used at 850-1100°C. Can become brittle at room temperature after service at 600-850°C.

AUSTENITIC STAINLESS STEEL 254SMO (S31254)

ASTM A240

Highly corrosion resistant austenitic stainless steel containing 6% molybdenum, plus copper. Pitting resistance equivalent =43.

ALLOY 31
(N08031)

ASTM B625, B462, B649, B366, B626

An advanced super-austenitic, high-chromium 6% moybdenum corrosion resisting alloy. Bridges the cost/performance gap between Ni-Cr-Mo alloys and 300 series stainless steels. Is used in the chemical process and petrochemical industries.


Outside Diameter

Wall Thickness

Outside Diameter

Wall Thickness

Outside Diameter

Wall Thickness

Outside Diameter

Wall Thickness

1/8

1

1

5

15/8

6

7/2

12

1/8

1.5

1

6

15/8

8

4

3

1/8

2

9/8

2

2

2

4

3.5

1/4

1

9/8

2.5

2

2.5

4

4

1/4

1.5

9/8

3

2

3

4

5

1/4

2

9/8

3.5

2

3.5

4

6

3/8

1

9/8

4

2

4

4

8

3/8

1.5

9/8

5

2

5

4

10

3/8

2

9/8

6

2

6

4

12

3/8

2.5

5/4

2

2

8

5

4

3/8

3

5/4

2.5

2

10

5

5

7/16

2

5/4

3

2

12

5

6

7/16

2.5

5/4

3.5

9/4

2

5

8

7/16

3

5/4

4

9/4

2.5

5

10

7/16

3.5

5/4

5

9/4

3

5

12

7/16

4

5/4

6

9/4

3.5

6

4

1/2

2

11/8

2

9/4

4

6

5

1/2

2.5

11/8

2.5

9/4

5

6

6

1/2

3

11/8

3

9/4

6

6

8

1/2

3.5

11/8

3.5

9/4

8

6

10

1/2

4

11/8

4

9/4

10

6

12

5/8

2

11/8

5

9/4

12

8

4

5/8

2.5

11/8

6

5/2

3

8

5

5/8

3

3/2

2

5/2

3.5

8

6

5/8

3.5

3/2

2.5

5/2

4

8

8

5/8

4

3/2

3

5/2

5

8

10

3/4

2

3/2

3.5

5/2

6

8

12

3/4

2.5

3/2

4

5/2

8

10

6

3/4

3

3/2

5

5/2

10

10

8

3/4

3.5

3/2

6

5/2

12

10

10

3/4

4

3/2

8

3

3

10

12

3/4

5

7/4

2

3

3.5

12

10

3/4

6

7/4

2.5

3

4

12

12

7/8

2

7/4

3

3

5

14

10

7/8

2.5

7/4

3.5

3

6

14

12

7/8

3

7/4

4

3

8

16

10

7/8

3.5

7/4

5

3

10

16

12

7/8

4

7/4

6

3

12

18

10

7/8

5

7/4

8

7/2

3

18

12

7/8

6

15/8

2

7/2

3.5

20

10

1

2

15/8

2.5

7/2

4

20

12

1

2.5

15/8

3

7/2

5

24

10

1

3

15/8

3.5

7/2

6

24

12

1

3.5

15/8

4

7/2

8



1

4

15/8

5

7/2

10



*Customized size please confirm with us


MATERIAL

Grade

Also Known As:

ASTM/ASME/JIS/UNS

EN/DIN

High Nickel

UNS N08800

1.4558

Alloy 800

Incoloy®

UNS N08810

1.4876

Alloy 800H

Incoloy®

UNS N08020

2.4660

Alloy 20

Carpenter®

UNS N08825

2.4858

Alloy 825

Incoloy®

Nickel Based

UNS N06600

2.4816

Alloy 600

Inconel®

UNS N06625

2.4856

Alloy 625

Inconel®

UNS N06022

2.4602

Alloy C22

Hastelloy®

UNS N04400

2.4360

Alloy 400

Monel®

UNS N10276

2.4819

Alloy C276

Hastelloy®

UNS N02200

2.4066

Alloy 200

-

UNS N02201

2.4068

Alloy 201

-

Available grades & their equivalent grades listed above are for guidance only.

Please do not hesitate to ask us for availability of other grades. We are happy to check availability for you.

Tolerance:

Tolerance

Nominal Outside Diameter, in. (mm)

Permissible Variations

Outside Diameter, in. (mm)

Thickness of Specified Nominal Wall, %

Thickness of Specified Minimal Wall, %

Plus

Minus

Plus

Minus

Plus

Minus

1(25) to 1.900(48), incl

0.015(0.40)

0.31(0.79)

16.0

12.5

28.5

0

over 1.900(48) to 41⁄2(114), incl

0.031(0.79)

0.031(0.79)

16.0

12.5

28.5

0

over 41⁄2(114) to 61⁄2(165), incl

0.047(1.2)

0.047(1.2)

16.0

12.5

28.5

0

over 61⁄2(165) to 91⁄4(235), incl

0.062(1.6)

0.062(1.6)

16.0

12.5

28.5

0

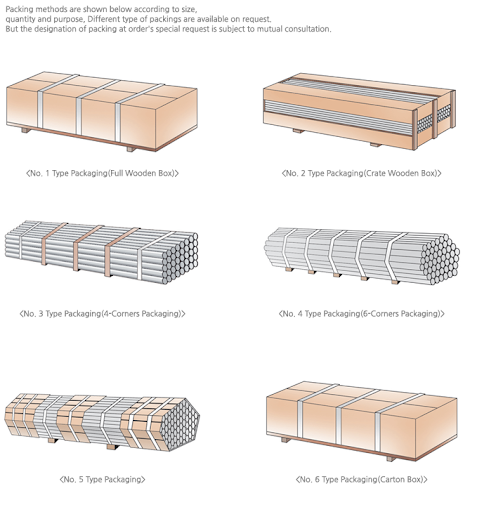

Bundled package

On bundle of steel tube shall be the same in batch number, steel grade and specification.the rest of tubing less than one bundle should be tied into small bundles.

The weight of each bundle should be less than 50kg.The max weight cannot exceed 80kg of the bundle If there are special requirements.

When the length of the steel tube is greater than or equal to 6m, with at least 8 strapping bands for each bundle, divided into 3 groups and 3-2-3.

When the length of the steel tube is less than 6m, and each bundle is tied at least 5 knots and divided into 3 groups, which are 2-1-2.

When the length of the tube is greater than or equal to 3m, and each bundle is tied with at least 3 bands, divided into 3 groups, 1-1-1 showed below

Wooden box package

The wooden box is suitable for cold rolling or cold drawing seamless steel tube, polished hot rolled stainless steel tube.

When the outer diameter of steel pipe is greater than or equal 10mm, the maximum weight of the container should be 50kg.

When the outer diameter of steel pipe is less than or equal 10mm, the maximum weight of the container should be 30kg.

package
