Nickel Alloy Plates

Standard:ASTM / ASME SB 162 / 127 / 424 /168 / 443 / 574 / 462
Size:600mm ~ 2000mm
Thickness : 0.1 mm to 12 mm Thk.
Form :Coils, foils, shim sheet, perforated sheet, strip, flats, blank (circle), ring (flange), etc.
Grade :UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (SMO 254 / 20 CB 3), UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276) etc

Nickel Plates made by nickel based alloys are very useful materials for the manufacture of high quality plates. Nickel Sheets is combined with higher creep properties at temperature and unsullied to form incredibly powerful and ductile.. Nickel Plate has a low annealed rigidity and extremely low work – toughening rate.. Nickel Coils are chosen with beyond 315 Degree C, for the reason that of its enhanced resistance to “creep.”Nickel Rolling Sheet has excellent corrosion resistance. We supply an extensive range of wide area Nickel Strips those are widely used in the most severe environments such as chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and recovery of sour natural gas. Nickel Plate specification governs a group of general requirements associated with plate, sheet, coil and strip

Product Name

Nickel Alloy Sheet/ nickel alloy plate

Grade

Duplex: 2205(UNS S31803), 2507(UNS S32750), UNS S32760 (Zeron 100), 2304, 904L



Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc



Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 /DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665



Haynes: Haynes 230/556/188



Inconel Series:

Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20;Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851,
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 /
UNS N06600 / DIN W. Nr. 2.4816



Incoloy: Incoloy 800/800H/800HT/825/925/926;



GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044



Monel: Monel 400/K500/R405



Nitronic: Nitronic 40/50/60;



Nimonic: Nimonic 75/80A/90/A263 。



Size

Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm

Types

1.According to the preparation process, it can be divided into deformation superalloys,
casting superalloys and powder metallurgy superalloys.
2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.

Application

High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines.

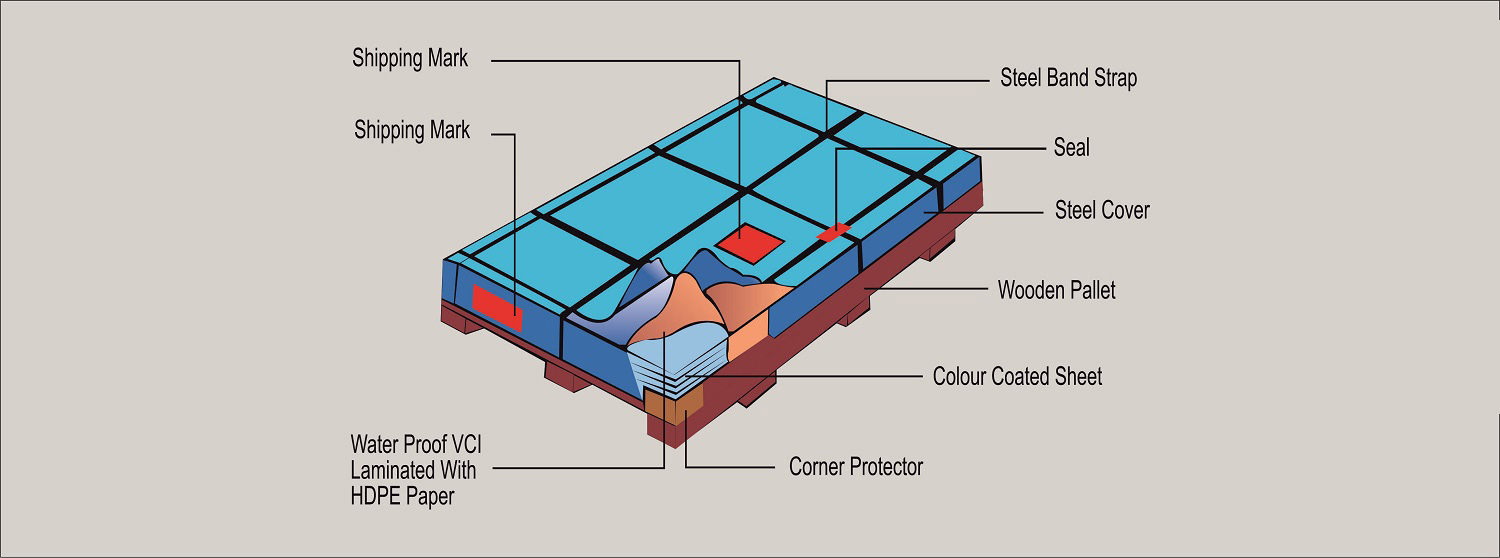

Packaging

1. cases packed in wooden cases
2. paper packaging
3. plastic packing
4. foam packaging
Packaging according to customer requirements or products





















DIN EN Material 2mm 3mm 3.17mm 4mm 4.76mm 5mm 6mm 6.35mm 8mm 10mm 12mm 15mm 20mm 25.40mm 31.75mm 38.10mm 40mm
2.4602 Alloy 22 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
1.4562 Alloy 31 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔



2.4605 Alloy 59 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔ ✔


- Alloy 120

✔
✔

✔








1.4886 Alloy 330 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔



2.4360 Alloy 400 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔ ✔


2.4816 Alloy 600 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔ ✔

✔
2.4851 Alloy 601 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔ ✔


2.4633 Alloy 602 CA ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔



2.4663 Alloy 617 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔



2.4856 Alloy 625 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔ ✔

✔
1.4876,1.4958 Alloy 800 H ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔ ✔


2.4858 Alloy 825 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔


✔
1.4529 Alloy 926 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔



2.4610 Alloy C-4 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔



2.4819 Alloy C-276 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔ ✔


2.4068 Nickel 201 ✔ ✔
✔
✔ ✔
✔ ✔ ✔ ✔ ✔







Grade

UNS

AMS

 ASTM

Werkstoff

British

Miscellaneous

Alloy 400

S04400

4544, 4675, 4730, 4574

B127, B164, B564, 163, B829



DIN17750

Alloy 75

N06075



2.4951, 2.4630

HR5, HR504, HR403, HR203

NC20T, DIN17752, DIN17751

Alloy 80A

N07080


B637

2.4952, 2.4631

HR1, HR201, HR401, HR601

DIN17742, NC20TA

Alloy 90

N07090

5829


2.4632

HR2, HR501, HR502, HR3, HR202, HR402


Alloy 625

N06625

5666, 5599, 5837

B443, B446, B564

2.4856


NC22DNB, NiCr22Mo9Nb

Alloy 718

N07718

5662, 5663, 5596, 5597, 5589, 5590, 5832

B637, B670

2.4668



Alloy X750

N07750

5667, 5668, 5598

B637




Alloy 200/201

N02201, N02200


B160

2.4066, 2.4060

3075


Alloy C263

N07263

5886, 5872


2.4650

HR10, HR206, HR404

DIN17570, NCK20D

Waspaloy

N07001

5704, 5706, 5707, 5709, 5828, 5544

B637

2.4654



standards3

standards1

standards2

Surface finish

Surface finish

Characteristics & Application

NO.1

Hot-rolled surface,annealed and pickled,can be used as cold-rolling material,industial tanks and chem i cal devices.

NO.2D

Cold-rolled, an nealed and pick led with out skinpassing the dull prod ucts can be used as auto mo bile parts, build ing
materrials and pipings.

NO.2B

The surface brightness and flatness of NO.2B is better than NO.2D. Then through a special surfacetreament to improve its
mechamical properties, N02B could nearly satisfy com pre hen sive uses.

NO.3

Polished with abra sive belt of grit #100#120,have bet ter bright ness with dis con tin u ous coarse stria, used as in ner and ex
ter nal or na ments for building, elec tri cal ap pli anc es and kitchen uten sils etc.

NO.4

Polished with abrasive belt of grit #150#180, have better brightness with discontinuous coarse stria, but thinner than NO.3, are
used as bathtud buildinginner and external ornaments electrical appliances, kitchen utensils and food processing equipment etc.

HL

Polished with abrasive belt of grit #150-320 on the No.4 finish and has continuous streaks, mainly used as building ornaments,
elevators, door of building, frontal plate etc.

BA

Cold rolled, bright an nealed and skin passed, the prod uct has ex cel lent bright ness and good re flex iv i ty like mirror, used
for lectrical appliances, mirror, kitch en apparatus, or na ment ma te ri als etc.


process nickel plate
