Steel Pipe Cap

Pipe Type:Pipe End Cap, Pipe Steel Cap, Standard Steel Pipe Cap, Strong Steel Pipe Cap
Material:Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
Specification:NPS from 1/2'' to 48'', DN from 12 to 1200,
WT:SCH5 to SCH160
Standard:ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,
JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T1340
End:According to the standard or the customer's requirements
Surface: Shot blasted, rust-proof black oil
Packing:Packed in Wood Cabins/ Wood Tray

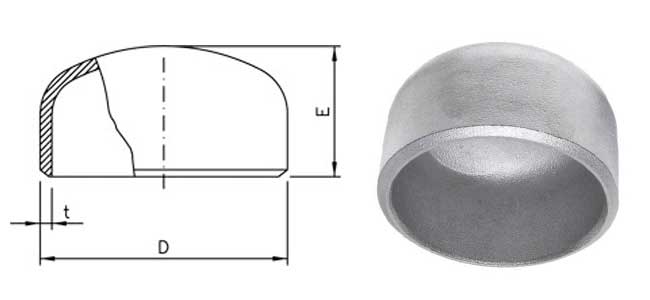

Buttweld End Cap Material Dimensions

steel cap


NPS O.D.
D
LENGTH
H
LENGTH
H1
1/2 21.3 25 25
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 38 44
2.1/2 73 38 51
3 88.9 51 64
3.1/2 101.6 64 76
4 114.3 64 76
5 141.3 76 89
6 168.3 89 102
8 219.1 102 127
10 273 127 152
12 323.8 152 178
14 355.6 165 191
16 406.4 178 203
18 457 203 229
20 508 229 254
22 559 254 254
24 610 267 305
26 660 267
28 711 267
30 762 267
32 813 267
34 864 237
36 914 267
38 965 305
40 1016 305
42 1067 305
44 1118 343
46 1168 343
48 1219 343


ASME B16.9 Cap Dimension Table

steel cap 2

CAPS – ANSI B 16.9 dimension

inches mm Height
D E
1/2 15 21,34 25,40
3/4 20 26,67 31,75

25 33,40 38,10
1 1/4 32 42,16 38,10
1 1/2 40 48,26 38,10
2 50 60,32 38,10
2 1/2 65 73,02 38,10
3 80 88,90 50,80
3 1/2 90 101,60 63,50
4 100 114,30 63,50
5 125 141,30 76,20
6 150 168,27 88,90
8 200 219,07 101,60
10 250 273,05 127,00
12 300 323,85 152,40
14 350 355,60 165,10
16 400 406,40 177,80
18 450 457,20 203,20
20 500 508,00 228,60
22 550 558,80 254,00
24 600 609,60 266,70
28    700 711,20 266,70
Dimension in mm

Weight Table Of Pipe End Cap

NPS STD XS SCH 160 XXS
1 0.09 0.14 0.18 0.23
1.1/4 0.14 0.18 0.23 0.34
1.1/2 0.18 0.23 0.27 0.41
2 0.27 0.34 0.57 0.68
2.1/2 0.41 0.45 0.79 1.13
3 0.68 0.79 1.32 1.81
3.1/2 0.91 1.13 2.72
4 1.13 1.36 2.68 3.4
5 2.04 2.49 4.54 5.44
6 2.95 4.08 6.8 8.16
8 5.44 7.26 14.06 13.61
10 9.07 11.34 25.85
12 13.61 16.33 43.09
14 16.33 20.41
16 18.14 24.49
18 24.49 32.66
20 34.02 39.01
22 42.64 56.7
24 43.54 58.97
26 53.98 72.12
30 78.02 103.87
NPS STD XS SCH 160 XXS

Dimensional Tolerances of ANSI B16.9 Pipe Cap Fittings

DIMENSIONAL TOLERANCES – CAPS
For all fittings Caps
Nominal Pipe Size (NPS) Outside Ø at Bevel Inside Ø at End Wall Thickness
t / t1
Overall Length E
1/2 a 2 1/2 1 0,8 Not 4
3 a 3 1/2 1 1,6 less 4
4 +2 -1 1,6 than 4
5 a 6 +3 -1 1,6 87,50% 7
8 2 1,6 of nominal 7
10 +4 -3 3,2 tickness 7
12 a 18 +4 -3 3,2
7
20 a 24 +6 -5 4,8
7
26 a 30 +7 -5 4,8
10
32 a 48 +7 -5 4,8
10

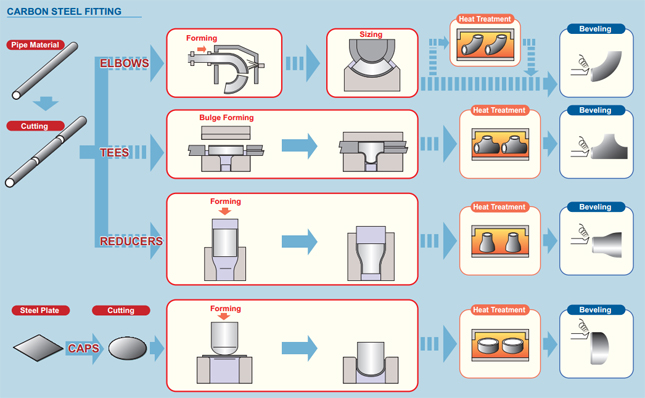

pipe fittings2

pipe fittings


Steel Cap

Steel Pipe Cap is also called Steel Plug, it usually welded to the pipe end or mounted on the external thread of the pipe end to cover the pipe fittings. To close the pipeline so the function is the same as the pipe plug.

(You can also to use a blind plate to close the pipeline, differently the blind plate is detachable and the welded steel cap is not removable. The cap includes a convex cap, a conical shell, a variable diameter section, a flat cover and a constricted opening.)

The convex cap have several shapes: a hemispherical cap, an elliptical cap, a dish cap, and a spherical cap. From the point of view of force, the hemispherical cap is gradually not good to manufacture, but it is gradually manufactured from the viewpoint of manufacturing difficulty.

Size Range:
DN15-DN600  (1/2"-24")       Seamless Type
DN15 - DN1200 (1/2"- 48" )  Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T1340
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil

Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection
