Steel Pipe Tee

Pipe Type:Seam Steel Tee,Seamless Steel Tee,Equal/Unequal Tee, Cross Tee, Socket Tee, Short Tee, Forging Tee,Weld Steel Tee
Application:Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Material:Carbon Steel --- ASTM A234 WPB/WPC, ANSI B 16.9, ASTM A105/A106/A53,
API 5L GR.B/A671-CC-70/A515-50/A135-A/A179-C
Stainless Steel --- ASTM 403 304/304L,316/316L,316Ti,321,317L,310S
Alloy Steel --- ASTM A234 WP1/5/9/11/12/22/91
Size:1/2"-48"(Dn15-Dn1200)
Degree: 45 degree, 90 degree
Surface: Black Paint, Anti Rust Oil, Hot-Dipped Galvanized
Packing:Plywood pallet or cases, according to client's requirement.

Butt Weld Equal Tee Dimensions of ASME B16.9:

Nominal Pipe Size(mm)

Outside diameter
at bevel(mm)

Center-to-End

Run (C)

Outlet(M)

1/2"

21.3

25

25

3/4"

26.7

29

29

1"

33.4

38

38

1 1/4"

42.2

48

48

1 1/2"

48.3

57

57

2"

60.3

64

64

2 1/2"

73.0

76

76

3"

88.9

86

86

3 1/2"

101.6

95

95

4"

114.3

105

105

5"

141.3

124

124

6"

168.3

143

143

8"

219.1

178

178

10"

273.0

216

216

12"

323.8

254

254

14"

355.6

279

279

16"

406.4

305

305

18"

457.0

343

343

20"

508.0

381

381

22"

559.0

419

419

24"

610.0

432

432

Standard:

ASTM A234

Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service

ASTM A420

Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service

ASTM A403

Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

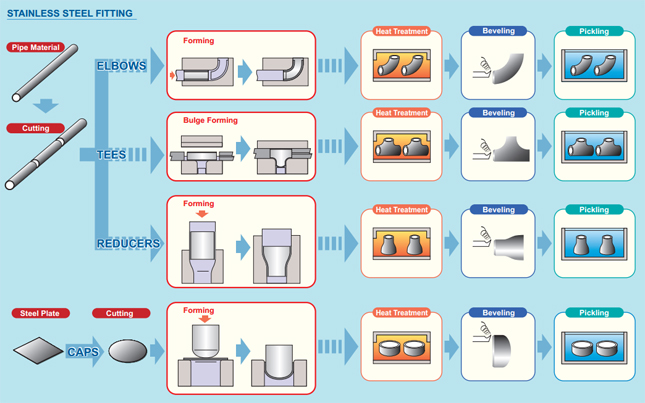

pipe fittings

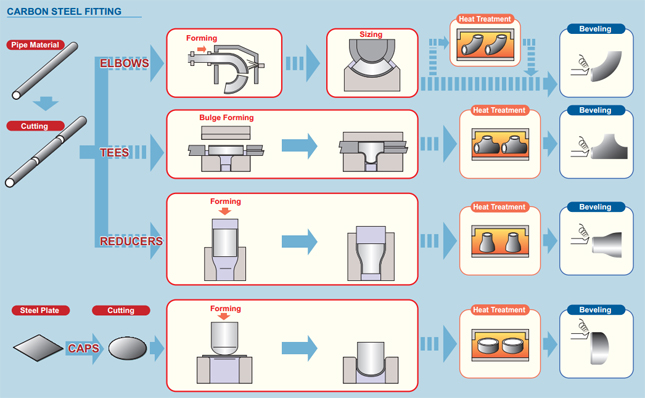

pipe fittings2

Description:

A tee is also called triplet,three way and “T” pieces and it can be used to either combine or split a fluid flow. Most common are tees with the same inlet and outlet sizes,

but ‘reducing’ tees are available as well. it means the one or two ends are differ in dimension.due to thisdimension differ,the makes the tee fittings with the capacity tocontrol the volume when requried.

Pattern

Weld

Seamless

Nominal size

1/2”-48”

(DN15-DN1200)

1/2”-20”

(DN15-DN500)

Wall thickness

2~100mm

2~50mm

Bend radius

SCH5S-SCH160 ,XXS

SCH5-SCH160

Materials:

Carbon Steel:ASTM A234 WPB WPC A105 A106 A53 A283-D  API5LB  A671-CC-70  A515-50  A135-A  A179-C,etc

Stainless Steel:304/304L, 316/316L,316Ti,321,317L,310S,etc

Alloy Steel:A335-P1,P2 ,P5 ,P11,P12 ,P22,P91,P92,A369-FP1,P2  A250-T1 A209-T1 A213-T2,T9 ,T12  A199-T11,T22,

Duplex Stainless Steel: S31803(SAF2205),S32750(SAF2507),S31500(3RE60)
