SMLS Tube

Pipe Type:seamless cold drawn tubes , hot finished seamless pipes,Stainless Steel Tube, Precision Tube
Application:heat exchangers condensers . evaporators . heating coils. digesters. fluid piping
Specification:OD:1/8’’-24’ WT:0.5-66mm
Standard:ASTM/ASME:A213/SA213 A249/SA249 A268 A312/SA312 A269 A270 A358 A376 A409 A511 A688 A789 A790 A803 A928 A544 A409 A632 A688 A778 A908
SB161 SB163 SB167 SB338 SB407 SB423 SB444 SB619 SB622 SB626 SB668 SB677 SB829
NFA NACE API  ISO HAF
Grade:304/304l/304h;321/321h;316/316l/316h;316ti;317l;347h;310s;uns31803;uns32750/u ns08904l,tp410/tp410s ect
Ends:Annealed, Pickling, Polished
Surface:Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating
Packing:Waterproof Paper Wrapped, Packed in Wooden Cabins

Size:

We have size out diameter up to 24’’ with wall thickness up to 66mm , including material grade 304/304L/304H;321/321H;316/316L/316H;316TI;317L;347H;310S;UNS31803;UNS32750/U NS08904L,TP410/TP410S;ECT

公称通径
Norminal Pipe Size

外径
Outside Diameter

公称壁厚Norminal Wall Thickness

NPS

DN

D

SCH5s

SCH10s

SCH10

SCH20

SHC30

SCH40s

STD

SCH40

SCH60

SCH80s

XS

SCH80

SCH100

SCH120

SCH104

SCH160

XXS

1/8

6

10.3

--

1.24

--

--

--

1.73

1.73

1.73

--

2.41

2.41

2.41

--

--

--

--

--

1/4

8

13.7

--

1.65

--

--

--

2.24

2.24

2.24

--

3.02

3.02

3.02

--

--

--

--

--

3/8

10

17.1

--

1.65

--

--

--

2.31

2.31

2.31

--

3.20

3.20

3.20

--

--

--

--

--

1/2

15

21.3

1.65

2.11

--

--

--

2.77

2.77

2.77

--

3.73

3.73

3.73

--

--

--

4.78

7.47

3/4

20

26.7

1.65

2.11

--

--

--

2.87

2.87

2.87

--

3.91

3.91

3.91

--

--

--

5.56

7.82

1

25

33.4

1.65

2.77

--

--

--

3.38

3.38

3.38

--

4.55

4.55

4.55

--

--

--

6.35

9.09

1 1/4

32

42.2

1.65

2.77

--

--

--

3.56

3.56

3.56

--

4.85

4.85

4.85

--

--

--

6.35

9.70

1 1/2

40

48.3

1.65

2.77

--

--

--

3.68

3.68

3.68

--

5.08

5.08

5.08

--

--

--

7.14

10.15

2

50

60.3

1.65

2.77

--

--

--

3.91

3.91

3.91

--

5.54

5.54

5.54

--

--

--

8.74

11.07

2 1/2

65

73.0

2.11

3.05

--

--

--

5.16

5.16

5.16

--

7.01

7.01

7.01

--

--

--

9.53

14.02

3

80

88.9

2.11

3.05

--

--

--

5.49

5.49

5.49

--

7.62

7.62

7.62

--

--

--

11.13

15.24

3 1/2

90

101.6

2.11

3.05

--

--

--

5.74

5.74

5.74

--

8.08

8.08

8.08

--

--

--

--

--

4

100

114.3

2.11

3.05

--

--

--

6.02

6.02

6.02

--

8.56

8.56

8.56

--

11.13

--

13.49

17.12

5

125

141.3

2.77

3.40

--

--

--

6.55

6.55

6.55

--

9.53

9.53

9.53

--

12.7

--

15.88

19.05

6

150

168.3

2.77

3.40

--

--

--

7.11

7.11

7.11

--

10.97

10.97

10.97

--

14.27

--

18.26

21.95

8

200

219.1

2.77

3.76

--

6.35

7.04

8.18

8.18

8.18

10.31

12.70

12.70

12.70

15.09

18.26

20.62

23.01

22.23

10

250

273.1

3.4

4.19

--

6.35

7.8

9.27

9.27

9.27

12.70

12.70

12.70

15.09

18.26

21.44

25.4

28.58

25.4

12

300

323.9

3.96

4.57

--

6.35

8.38

9.53

9.53

10.31

14.27

12.70

12.70

17.48

21.44

25.4

28.58

33.32

25.4

14

350

355.6

3.96

4.78

6.35

7.92

9.53

--

9.53

11.13

15.09

--

12.70

19.05

23.83

27.79

31.75

35.71

--

16

400

406.4

4.19

4.78

6.35

7.92

9.53

--

9.53

12.7

16.66

--

12.70

21.44

26.19

30.96

36.53

40.49

--

18

450

457.2

4.19

4.78

6.35

7.92

11.13

--

9.53

14.27

19.05

--

12.70

23.83

29.36

34.96

39.67

45.24

--

20

500

508.0

4.78

5.54

6.35

9.53

12.7

--

9.53

15.09

20.62

--

12.70

26.19

32.54

38.1

44.45

50.01

--

22

550

558.8

4.78

5.54

6.35

9.53

12.7

--

9.53

--

22.23

--

12.70

28.58

34.93

41.28

47.63

53.98

--

24

600

609.6

5.54

6.35

6.35

9.53

14.27

--

9.53

17.48

24.61

--

12.70

30.96

38.89

46.02

52.37

59.54

--







Product Description

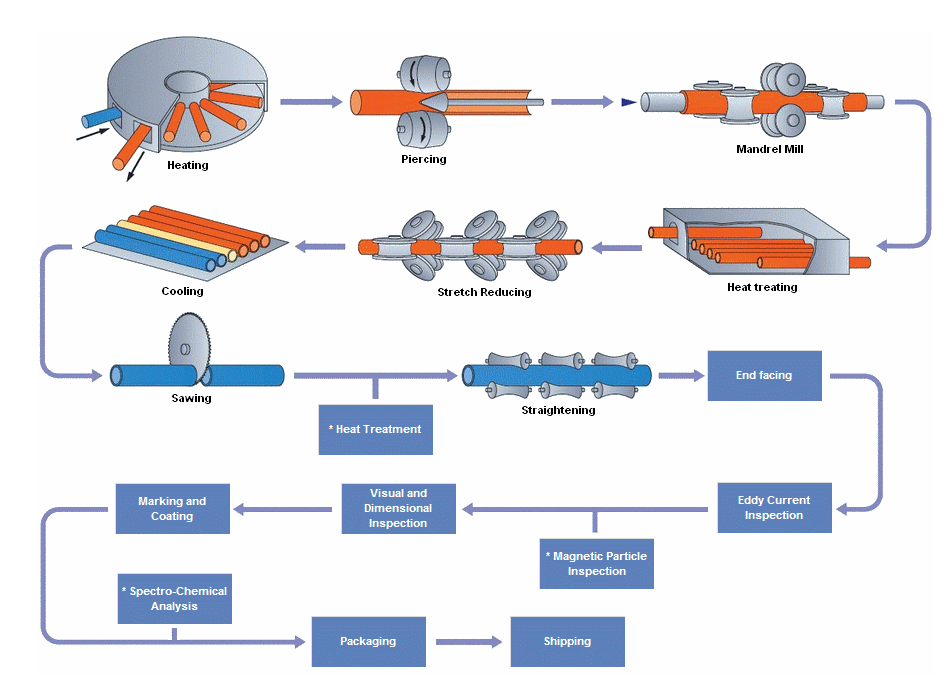

 Seamless stainless pipe is made by rolling, the rolling method involves piercing the material while it is being rolled, and is suitable for mass production. The figure shows the manufacturing process used in the Mannesmann plug mill, which is a typical rolling process. The Mannesmann-type piercer reduces the material by rolls that are inclined obliquely to each other. When the round billet is rotated while being compressed in the diametric direction, the central part of the billet becomes loose, which makes it easy to pierce a hole through the center. This is called the Mannesmann effect. The pierced portion is expanded by the elongator, and the wall thickness is then thinned and elongated by the plug mill. The internal and external surfaces are smoothed by the reeler, and the final dimensional adjustments are made by the sizer

  We Threeway steel co have a large inventory of high-quality stainless steel seamless tube to meet the harshest environments. O Seamless stainless tube provides a high level of strength and corrosion resistance for applications in harsh industrial environments whether hot or cold. We provide additional custom services such as tube cutting and tube polishing services to meet your specifications.

 Our quality Stainless Steel Seamless Tube sold worldwide, Rich stock, fast delivery,Your satisfaction is our greatest pursuit. ASTM, AISI, DIN standard,famous reliable supplier,high quality services.

Delivery condition:

HOT FINISHED, COLD FINISHED, ANNEALED , POLISHED , PICKLED  Normal annealing+Tempered;Brighting,BK;


PRODUCTS:  ASTMA312 304 STAINLESS SEAMLESS PIPES , ASTMA312 316L STAINLESS STEEL SEAMLESS PIPES , SS304 SEAMLESSTUBES, SS304L SEAMLESS TUBING ,SS316 SEAMLESS TUBES,SS316L SEAMLESS PIPES ,DUPLEX SEAMLESS TBES ,SS904L SEAMLESS TUBES ,SS310S SEAMLESS TUBES,SS317L SEAMLESS PIPES,UNS31803 DUPLEX STAINLESS STEEL SEAMLESS PIPES.

TEST REPORTS:PMI TEST REPORTS, EN10204.3.1 CERTIFICATE , NABL APPROVED LAB REPORT ON CHEMICAL AND MECHNICAL PROPERTIES NDT or OTHER TEST REPORTS , 100% X-RAY WELDING REPORTS.


APPLICATIONS:

heat exchangers condensers . evaporators . heating coils. digesters. fluid piping

sugar mills.dairies .breweries. food processing

pharmaceuticals. chemical . petrol chemicals

power plants

PAPER&PULP MANUFACTURING

TEXTILE INDUSTRIES

AUTOMOBILE EXHAUST PIPES

GENERAL ENGINEERING INDUSTRIES

HOSPITAL AND KITCHEN EQUIPMENT

FURNITURE AND INTERIOR DECORATION
