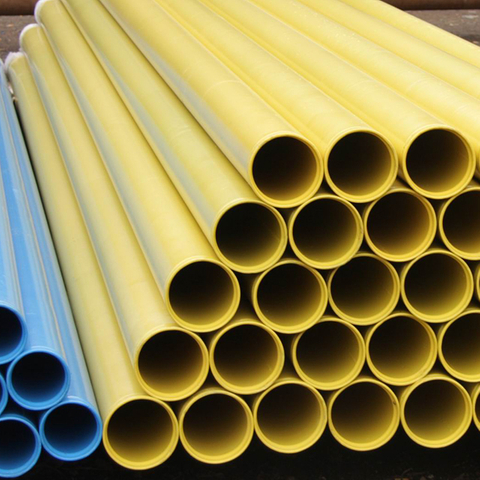

  • Epoxy Coating Pipe
    Pipe Type: FBE (Fusion Bond Epoxy) Coated Pipe, Epoxy Coated Carbon Steel Pipe
    Application:Used for Coal mine,heat and power plant,oil and gas transmission
    Specification:OD:0.405-80(in) or 10.3mm-2032mm
    WT:SCH10~SCH160 Or STD,XS,XXS Or 1.73mm~59.54mm
    LENGTH: 4/6/12/18/21 meters
    Standard:API 5L, A795,s355,DIN30670,bs1387,q235b,s355j2h,q345b
    Grade:X42,X52,X56,X60,X65,X70,PSL1,PSL2,API5L.GRA,B,C
    Ends:Plain end,Bevel end
    Surface:Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
    Packing:in bundles, in loose, Nylon Strip for each bundle for piece pipe

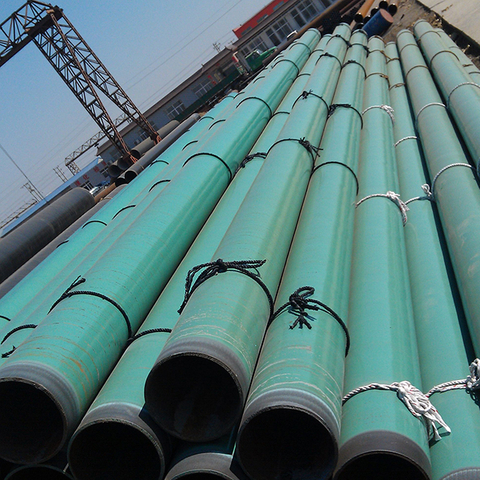

  • FBE Coating Pipe
    Pipe Type: FBE (Fusion Bond Epoxy) Coated Pipe, Epoxy Coated Carbon Steel Pipe
    Application: Used for Coal mine,heat and power plant,oil and gas transmission
    Specification: OD:Ф48--Ф3000
    WT:5-25mm
    LENGTH: 4/6/12/18/21 meters
    standard: A795,s355,DIN30670,bs1387,q235b,s355j2h,q345b etc
    Grade:X42,X52,X56,X60,X65,X70,PSL1,PSL2,API5L.GRA,B,C
    Ends: Bare or Black Painted or Anti-corrosion, such as 3LPE;
    Surface: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement

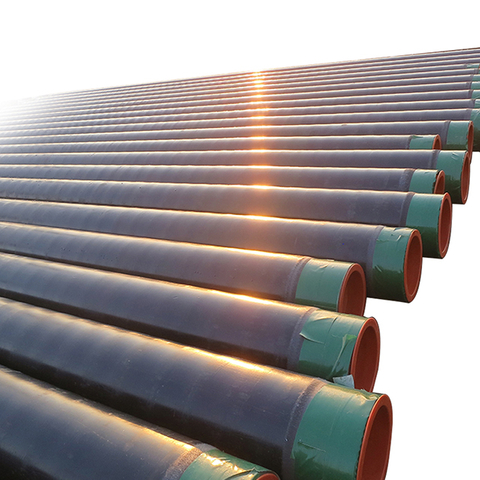

  • 3PE coating Pipe
    Pipe Type: FBE (Fusion Bond Epoxy) Coated Pipe, 3PE coating Pipe.
    Application: the products are widely used in oil pipeline, natural gas pipeline, heat supply pipeline, water supply pipeline.
    Specification:OD:Ф48--Ф3000
    WT:5-25mm
    LENGTH: 4/6/12/18/21 meters
    Standard:GB/T23257-2009、SY/T0413-2002、DIN30670-91、CAN/CSA-Z245.21-M92,
    A795,s355,DIN30670,bs1387,q235b,s355j2h,q345b
    Grade:GR.B,ST37,ST52,X42,X46,X52,X60
    Ends: Bare or Black Painted or Anti-corrosion, such as 3LPE;
    Surface:Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
    Packing:Waterproof Paper wrapped, Steel Strips bundled, two tags on each bundle

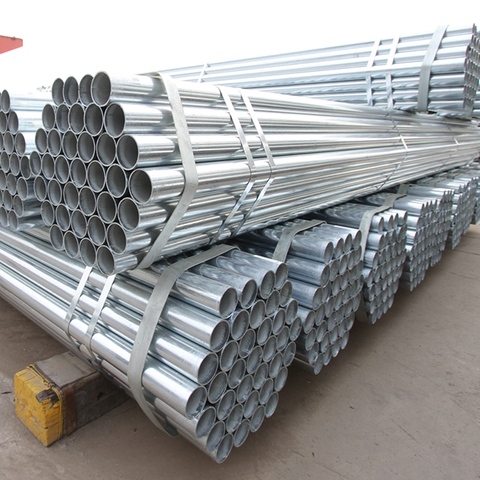

  • Galvanized Steel Pipe
    Pipe Type: FBE (Fusion Bond Epoxy) Coated Pipe, Epoxy Coated Carbon Steel Pipe
    Application:Used for transporting low pressure liquid, gas and heating
    Specification:OD:OD: 21.3mm ~ 406.4mm
    WT:WT: 0.5mm ~ 20mm
    LENGTH: 0.3mtr ~ 18mtr, Ramdon Length, Fixed Length, SRL, DRL
    Standard: GB/T 3091 Q195/Q215/Q235/Q345, ASTM A53, BS 1387, JIS G3444 STK400/STK500, EN 39, EN 1139 S235JR/S275JR, EN 10025, EN 10219
    A795,s355,DIN30670,bs1387,q235b,s355j2h,q345b Grade:X42,X52,X56,X60,X65,X70,PSL1,PSL2,API5L.GRA,B,C
    Ends: Square Cut/Threaded, Burr Removed,Zinc Coating: 120~500 g/m2 (30um~70um)
    Surface:Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
    Packing:Steel Strips bundled, Plastic Caps plugged, Waterproof Paper wrapped etc.

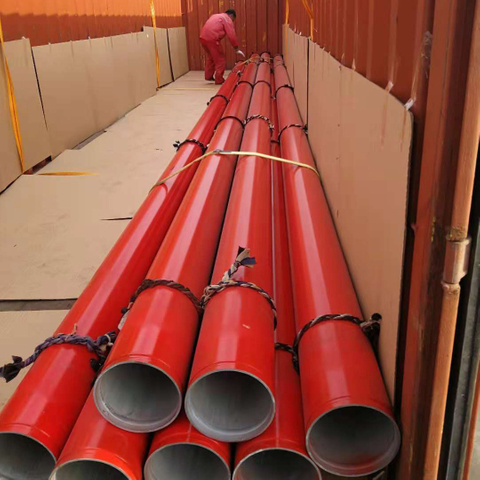

  • Groove pipe
    Pipe Type:Welded Steel Pipe, Welded,carbon steel,Fire protection pipe,Fire sprinkler pipe,Fire fighting pipe
    Application:Oil and structural in low pressure liquid and gassy transportation,building and bridge and bridge field
    Specification: Out Diameter: 33.4mmOD~609.6mm OD
    Wall Thickness: 0.049” – 2.5” (1.65mm- 9.53mm)
    Length: 5.8m, 6 m , 12 m or according to customer’s request
    Standard:GB/T3091-2001 , BS 1387-1985 , DIN EN10025 , EN10219 , JIS G3444:2004 , ASTM A53 SCH40/80/STD , BS-EN10255-2004
    Ends:Rolled Groove end , Slotted end.
    Surface:painted red color RAL3000 ,Galvanized and then painted red color, black color painted, epoxy coated, anti-rust oiled , or bare no surface treatment
    Packing:1. in bundle with steel strips;
    2. in bundle with steel strips and plastic waterproof wrapped

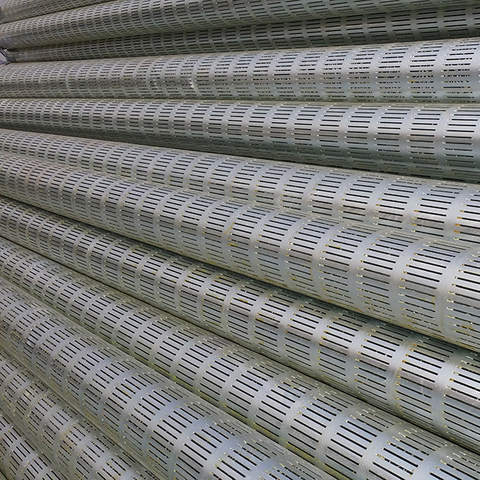

  • Screened Steel Pipe
    Pipe Type: .Slotted Liner、Perforated Pipe、Bridge Slotted Screen Pipe、Wedge Wire Water Screen Pipe
    Application:use for horizontal wells,water treatment and paper making industry.
    Specification:OD:51-508mm WT:67-508mm LENGTH:2-19
    Standard:API SPEC 5L、ASTM A53、ASTMA252、EN10219、EN10217、JIS G3444、AS1163
    Ends: Square Cut/Threaded, Burr Removed,
    Surface:Bare, Lightly Oiled,
    Packing:Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped
  • Threading pipe
    Pipe Type:carbon steel,welded, erw
    Application: Construction / building materials steel pipe
    Low pressure liquid, water, gas, oil, line pipe
    Specification: Out Diameter: 21.3mmOD~762mm OD
    Wall Thickness: 0.049” – 2.5” (1.24- 63.5mm)
    Length: 5.8m, 6 m , 12 m or according to customer’s request
    Standard: DIN 2440, ISO 65, BS 1387, BS 1139, BS 4568, EN 10255, EN 39 GB/T 3091, GB/T 13793
    JIS 3444 ASTM A53, A500, A36, A252, A795, API 5L
    Ends:Threaded ends : with or without coupling / socket
    Surface:Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings
    Packing: 1. in bundle with steel strips;
    2. in bundle with steel strips and plastic waterproof wrapped
